Occurrence of bla_NDM-1 & absence of bla_KPC genes encoding carbapenem resistance in uropathogens from a tertiary care centre from north India

The carbapenems are β-lactam antibiotics that are used in the treatment of infections caused by extended spectrum beta-lactamases (ESBL) producing Gram-negative bacteria (GNB) and several serious bacterial infections like meningitis, nosocomial pneumonia, nosocomial sinusitis and sepsis of unknown origin. Resistance against carbapenems is mediated mainly by metallo-β-lactamases. A decade ago the genes encoding metallo-β-lactamases (MBL) were mainly present in the non-fermenting GNB like Pseudomonas aeruginosa and Acinetobacter species1. However, the latter data suggest that these have disseminated at an alarming rates to the members of family Enterobacteriaceae as has been seen with epidemics of bla_KPC clones in USA, and Europe and the worldwide epidemic with bla_NDM-1 producing Gram-negative bacteria2. The New Delhi metallo β-lactamase (NDM-1) producing Escherichia coli and Klebsiella pneumoniae and other resistant GNBs, such as Acinetobacter species have been isolated more frequently from cases of urinary tract infection (UTI)3. This study was designed to observe the presence of the genes encoding important carbapenemases in uropathogens causing complicated urinary tract infection (CUTI) in a tertiary care centre in north India, and their genetic relatedness.

Material & Methods

The study was performed on carbapenem resistant uropathogens (CRU) isolated from patients with complicated urinary tract infection attending the outpatient department or admitted at the Nehru hospital of the Postgraduate Institute of Medical Education and Research (PGIMER), Chandigarh, India, during 2008 and 2012. Baseline prevalence of carbapenem resistant uropathogens was obtained from laboratory records maintained during 2008 and 2012. Complicated UTI was defined as infection developing in a patient with anatomically, physiologically or functionally compromised urinary tract4.

Bacterial isolates: A total of 166 non-duplicate consecutive carbapenem resistant uropathogens were collected over a period of two years (between 1^st May to 31^st August in 2008 and 2012) from patients with complicated UTI. All the isolates were identified using standard conventional biochemical tests. Antibiotic susceptibility was performed using the Kirby Bauer disc diffusion method5 and results were interpreted as per the Clinical and Laboratory Standards Institute (CLSI) guidelines6. The antibiotic discs were obtained from Hi-media, Mumbai, India. Only those isolates that had a reduced susceptibility to meropenem (zone size ≤21 mm) and were found to produce carbapenemases and metallo-beta-lactamases by using both modified Hodge test and double disc synergy test were included in this study7. Briefly, the indicator organism, E. coli ATCC 25922, at a turbidity of 0.5 McFarland standard, was used to swab inoculate the surface of a Mueller-Hinton agar (Hi-Media, Mumbai, India) plate, and the test strain was heavily streaked from the plate centre to the periphery. After the plate was allowed to stand for 15 min at room temperature, a 10 µg imipenem disc (Hi-Media) was placed at the centre, and the plate was incubated overnight. The presence of a distorted inhibition zone was interpreted as a positive result for carbapenem hydrolysis screening. The detection of mβ0 L production was also performed by the combined-disc test by using two imipenem discs (10 μg), one containing 10 μl of 0.5 M EDTA (SRL Laboratories, India), which were placed 25 mm apart on a Mueller-Hinton agar plate7.

Molecular detection of carbapenemase genes: Polymerase chain reaction (PCR) was performed for bla_IMP (detects all imipenems except IMP-9, IMP-16, IMP-18, IMP-22 and IMP-25), bla_VIM, bla_KPC and bla_NDM-1 to identify the presence of the resistance genes, using the primers described in Table I89. Total DNA (2 µl) was subjected to PCR in a 25 µl reaction mixture containing 1x PCR buffer, 0.4mM dNTP(Bangalore Genei, India), 0.6 µM each of forward and reverse primers (Sigma Aldrich, India), and 1 U of Taq polymerase (Bangalore Genei, India). Amplification was carried out as follows: initial denaturation at 94°C for 10 min; 30 cycles of 94°C for 40 sec, 55°C for 40 sec and 72°C for one min; and a final elongation step at 72°C for seven min. The annealing temperature was 55°C for bla_IMP and 58°C bla_VIM, and bla_NDM-1 genes. A 100 bp DNA ladder was used as a size marker. Amplicons were visualized after running at 90V for one hour on a 2 per cent agarose gel containing ethidium bromide in a gel documentation system (Alpha Innotech, AlphaImager 3400).

Table I Primer sets used for carrying the PCR reaction

Molecular typing of the carbapenem resistant uropathogens: Of the 166 isolates, 80 were chosen randomly for molecular typing using BOX PCR using the primer BOX-A1R primer (5’-CTACGGCAAGGCGACGCTGACG-3’) as described elsewhere10. Briefly, 500 ng of DNA was added to 25 µl reaction mixture containing 2.5 µl of PCR buffer with 1.5 mM MgCl₂, 0.8 µl of dNTPs, 2.25 µl of primer, 0.5 µl of Taq polymerase and PCR grade water. Amplification was carried out as follows: initial denaturation for two min at 94°C, 30 cycles of 94°C for 30 sec, 55°C for one min and 72°C for eight min; and a final elongation step at 72°C for eight min. Further steps till visualisation of the bands were the same as for PCR. The gel images were imported into Bionumerics 7.1 (Applied Maths NV, Belgium). E. aerogenes, Morganella morganii, Proteus mirabilis and Providencia stuartii were excluded from BOX PCR as the total number of individual isolates was < 10. Only those isolates with ≥ 7 bands (between 100 and 1500 bp) were included for analysis. Dendrogram was constructed using the band based UPGMA protocol11. The experiment was repeated twice.

Statistical analysis: The chi square test was applied to compare different proportions of samples and/or cases of complicated UTI during 2008 and 2012.

Results

High carbapenem resistance was observed amongst Enterobacteriaceae and non-fermenting GNBs during 2008 (9.3 and 61.6%) and 2012 (12.3 and 43.8%) (Table II). A total of 166 carbapenem resistant uropathogens which were isolated between May to August 2008 and 2012 at our centre, were analysed. Majority (57, 73.1%) of the isolates from 2008 were non-fermenting GNB and the rest (21, 26.9%) belonged to the family Enterobacteriaceae. Among the 88 isolates from 2012, 51 (58%) were members of family Enterobacteriaceae and 37 (42%) were non-fermenting GNB. In 2008 isolates the bla_VIM gene was present in 34 isolates (43.6%), bla_IMP gene was present in five (6.4%) and none had bla_NDM-1 or bla_KPC gene. There were two isolates from 2008 which had both bla_VIM and bla_IMP genes. Among the isolates obtained during 2012, bla_NDM-1 gene was present in 47 (53.4% of total and 84.3% of Enterobacteriaceae), bla_VIM in 19 (24.4%), and bla_IMP in one isolate. Six isolates from 2012 had bla_VIM and bla_NDM-1 genes, while a single isolate with bla_IMP gene also had bla_NDM-1 gene. Forty one (52.6%) and 25 isolates (28.4%) from 2008 and 2012 did not have any of the genes tested (Table III).

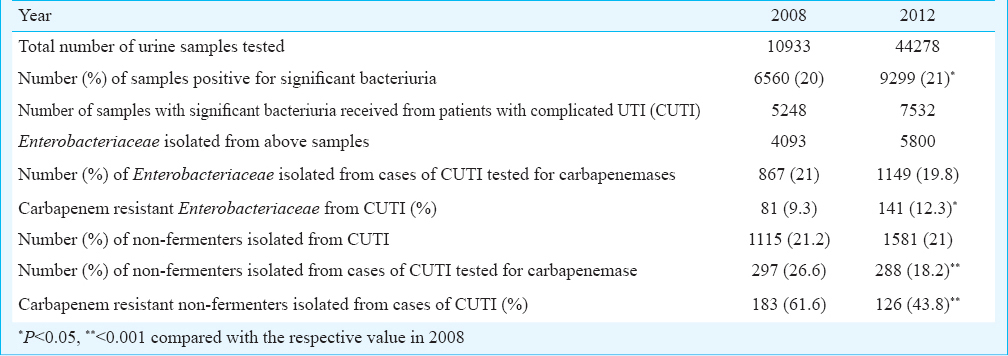

Table II Details used to calculate baseline carbapenem resistance in isolates from cases of urinary tract infection (UTI)

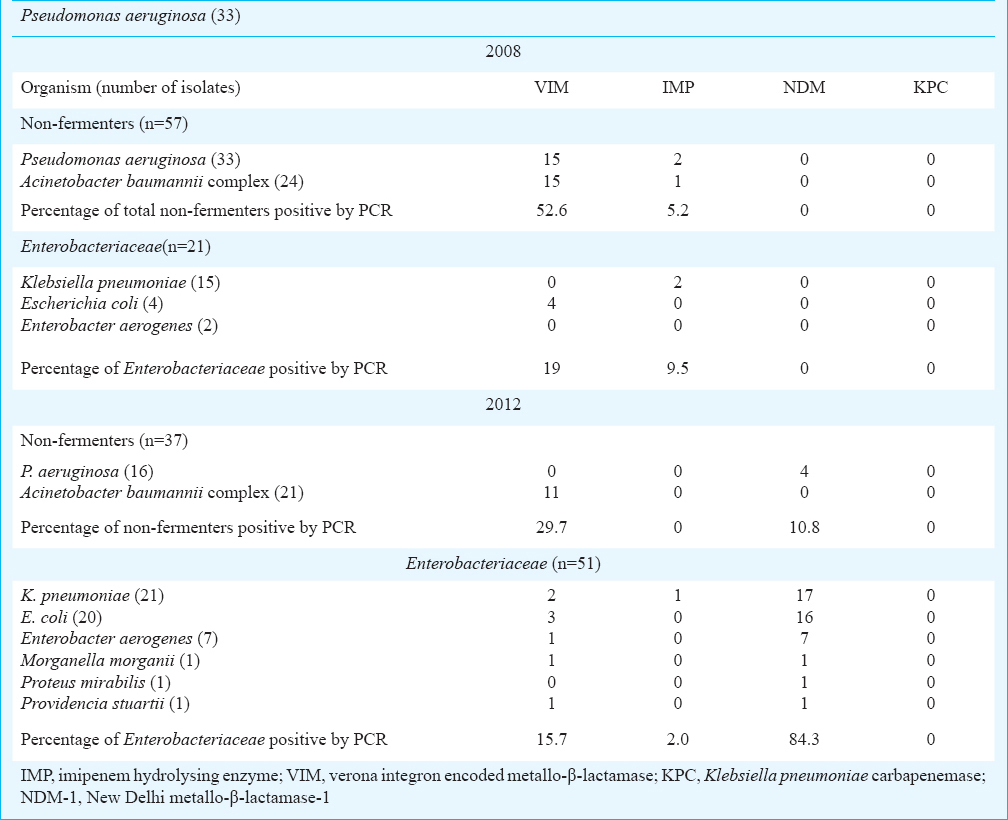

Table III Beta lactamase gene profile of different carbapenem resistant Enterobacteriaceae (CRE) isolates obtained during 2008 and 2012

Of the 80 isolates randomly selected for typing, 25 were P. aeruginosa, 20 were E. coli, 20 were K. pneumoniae, and 15 belonged to A. baumannii complex. Only 58 (21 P. aeruginosa, 13 E. coli, 17 K. pneumoniae, and 7 A. baumannii complex) from the above had > 10 bands (between 100-1500 bp) and were analysed. The dendrogram is shown in the Figure. A cluster of possibly related isolates was defined as isolates having more than 70 per cent similarity, while those having similarity of >90 per cent were considered as closely related. Accordingly, it was found that there was no clustering among the Acinetobacter spp. Six possibly related clusters (PA1 to PA 6) were seen among the P. aeruginosa isolates; PA 4, PA 5 and PA 6 contained isolates only from 2008, while PA1, PA2 and PA3 had isolates from 2008 and 2012. Three and four possibly related clusters each were found among K. pneumoniae and E. coli isolates. It was seen that the isolates did not cluster according to the year of isolation among K. pneumoniae. While, the same was true for E. coli, except in cluster EC 3 which contained isolates only from 2012. Two closely related isolates were found in each of the following clusters: PA6, PA4, PA2, PA3, EC3, and KP2. Similarly, four closely related isolates were found in cluster PA1.

Close

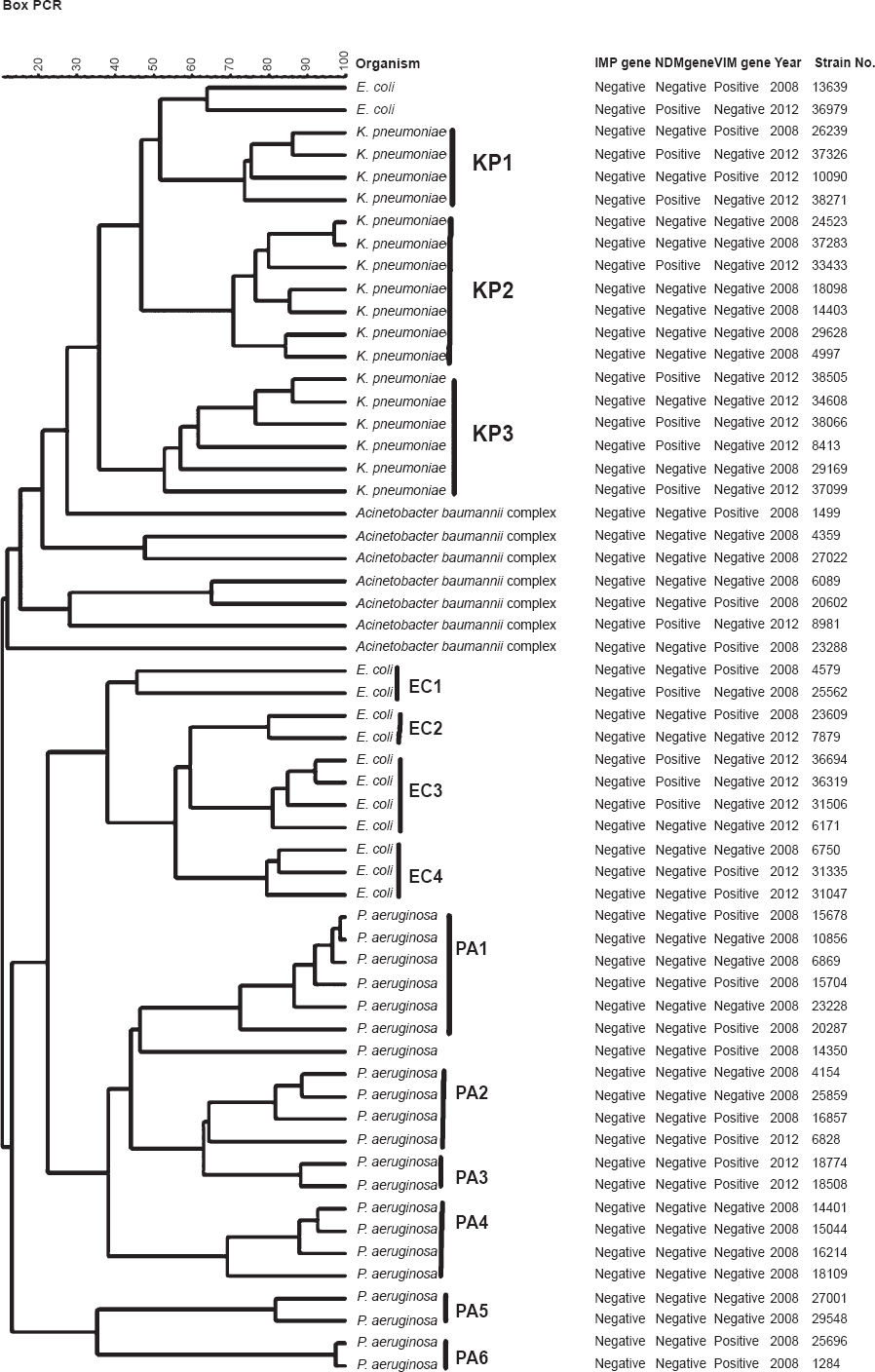

Figure

UPGMA (unweighted pair group method with arithmetic mean) tree fo BOX-PCR patterns from 58 carbapenem resistant uropathogens isolated during 2008 and 2012.

Export to PPT

Discussion

In view of the increasing reports of carbapenem resistant pathogens from India and lack of data regarding the scenario in carbapenem resistant uropathogens isolated from cases of complicated UTI, this study was done to know the occurrence of commonly occurring carbapenemase encoding genes in the above and to study the genetic relatedness between these isolates.

High carbapenem resistance was found among uropathogens at our centre. It was observed that carbapenemase resistance which was a problem in non-fermenters, became more common in Enterobacteriaceae during 2012, and majority of our isolates that fulfilled the criteria of carbapenem resistance in 2008 were non-fermenting GNB while members of the family Enterobacteriaceae (83.60%) formed the bulk of carbapenem resistant isolates during 2012. A number of methods like modified Hodge test, double disc synergy test, molecular detection of carbapenemase encoding genes are available for detection of carbapenem resistance in GNB. Since, there are no uniform guidelines for detection of carbapenemase production among GNB; we performed both modified Hodge test and double disc synergy test simultaneously12. Only those isolates positive by both the tests were included in the study.

There have been several reports of GNB producing carbapenemases from both India and abroad. The most common among them being imipenem hydrolysing enzyme (IMP), Verona integron encoded metallo beta lactamase (VIM), Klebsiella pneumoniae carbapenemase (KPC) and New Delhi metallo beta-lactamase-1 (NDM-1) encoded by bla_IMP, bla_VIM, bla_KPC and bla_NDM-1 genes, respectively131415. The bla_NDM-1 gene was first described in 2008 in a Klebsiella isolate obtained from a patient in Sweden who had been previously hospitalized in New Delhi16. Castenheira et al17 reported the presence of bla_NDM-1 (15 out of 39 CRE, 38.5%) and its dissemination in Indian CRE isolated between 2006-2007. Several reports have been published on the presence of this gene in non-fermenters both from India and abroad181920. However, none of the CRUs isolated during 2008 in our study had bla_NDM-1 gene, though, it was the commonest carbapenem encoding gene in carbapenem resistant Enterobacteriaceae (CRE) isolated during 2012. We also found four isolates of P. Aeruginosa obtained during 2012 having bla_NDM-1 gene. Such a high occurrence of bla_NDM-1 indicates an endemic occurrence and appearance and rapid spread of this gene after 2008 in northwest India.

KPC carbapenemase was first reported from United States of America during 2001. These were virtually resistant to all antibiotics and spread rapidly globally21. A prevalence of 34.8 per cent of bla_KPC has been reported by Lascols et al22 in CRE isolated from intra-abdominal infection from India. However, in our study none of our isolates were positive for bla_KPC. Our finding was in agreement with that of Nagaraj et al14 who also did not find bla_KPC in any of their crE10.

The bla_IMP gene first detected in the 1980s in Japan and subsequently reported worldwide23, was the least common gene detected during 2008 and 2012 in our study. This finding was in agreement with that of Amudhan et al15 who also found a low level of bla_IMP during 2010. However, it was contrary to the findings of Dwivedi et al24 who reported an occurrence of bla_IMP in seven out of 12 carbapenem resistant Enterobacteriaceae isolated in 2005 and 2006. This could be due to differences in the local circulating strains and not due to differences in type of clinical samples since prior antibiotic therapy which is a risk factor for the development of carbapenemase production was present in both patients of ventilator associated pneumonia (VAP), complicated UTI and hospitalized patients152425.

Among the non-fermenters bla_VIM was the commonest gene detected both during 2008 and 2012. This finding was similar to that reported earlier2226. Forty one (52.6%) and 25 (28.4%) isolates obtained during 2008 and 2012, respectively did not have any of the genes tested for by PCR. The carbapenem resistance was possibly mediated by other genes not tested in the present study (e.g. GES, OXA-48, PER and VEB) or other mechanisms like absence of OprD which diminishes the permeability of cell wall to carbapenems, or presence of efflux pumps and altered penicillin binding proteins82728.

Molecular typing of the isolates was done using BOX-PCR technique. It is a type of repetitive element palindromic-PCR, which has been previously used for typing of both Gram-positive and Gram-negative organisms293031. In previous studies, it was found to be rapid and have similar discriminatory capability as pulse field gel electrophoresis (PFGE)3233. We found that there were multiple clusters of possibly related isolates, though there was no evidence for a single dominant clone. Our study also demonstrated that multiple clusters of possibly related strains were circulating at a particular point of time and some which were present in 2008, were also obtained in 2012, showing the persistence of some closely related strains. In this study, an increased carbapenem resistance was found among the members of Enterobacteriaceae from 2008 to 2012, which was mainly due to carbapenemases encoded on plasmids. These carbapenemases have a potential to be transferred both intra- and intergenically. Hence, this calls for better infection control measures and continued surveillance for carbapenem resistance.
