Preclinical evaluation of hydrogel sealed fluropassivated indigenous vascular prosthesis

In vitro studies

Physical characteristics: Laboratory tests including burst strength, suture retention, fraying at edges, conformability and suturability, already tested in standard test grafts, were performed12.

Haemo-compatibility tests: Platelet consumption, leucocyte consumption and haemolysis (%) were determined after exposing the graft to human blood for 30 min. For this, blood from a healthy human volunteer was collected into anticoagulant citrate phosphate dextrose-adenine. Graft samples were placed in polystyrene culture plates for one hour with phosphate buffered saline before these were exposed to blood. To each plate, 10 ml blood was added and 5 ml sample was collected immediately for initial analysis. The remaining 5 ml blood was exposed to the materials for 30 min under agitation (75±5 rpm) using Environ shaker (Kuhner AG, Switzerland) thermostated at 35°C±2°C. Four empty polystyrene culture dishes were exposed with blood as a reference and four samples were used for each test. The blood counts at initial and after 30 min exposure were analyzed using a Haematology Analyser (Sysmex-K 4500, GMI, Minnesota, USA). Percentage haemolysis was determined using the following procedure. The total haemoglobin (Hb) in the whole blood samples were measured using the automated analyser. Free Hb liberated into the plasma after exposure to the sample was measured using a Diode array spectrophotometer (Hewlett Packard, Germany). The percentage haemolysis was calculated using the formula: Haemolysis (%)=(Free Hb/Total Hb)×100

Small animal toxicity studies: Test graft coated with PVDF and alginate-gelatin extracted in physiological saline (PS) and cottonseed oil (CSO) at 37°C for 72h were collected and used for acute systemic toxicity in mice, intracutaneous irritation test in rabbits and intramuscular implantation in rabbits. A test material of 10×1 mm size was implanted in to the paravertebral muscle of rabbits. The sample sizes of in-house acclimatized small animals used in this study were as follows:

1. Acute systemic toxicity - Intravenous application test - 10 animals (mice), Control - 5 animals. Intraperitoneal application test - 10 animals (mice), Control - 5 animals.

2. Intracutaneous irritation test - 3 rabbits (5 test sites/5 control sites).

3. In vitro haemolysis - n=3 (rabbit blood).

4. Implantation in muscle - n=9 rabbits [3 animals each, three time periods (1, 4 and 12 wk)].

The animal studies were conducted in accordance with good laboratory practice (GLP) and in an accredited laboratory (COFRAC, France) that deals with the toxicological evaluation of biomaterials and medical device. The tests were performed as regulatory tests as per ISO (International Organization for Standardization) standards and not as research mode. Hence, the power of the study was not estimated. All animal studies were approved by the Institutional Animal Ethics Committee (IAEC).

Methods of animal toxicity studies conducted were as follows:

Acute systemic toxicity: The study was conducted as per ISO 10993-1113. Test for acute systemic toxicity test were conducted in accordance with Organisation for Economic Co-operation and Development (OECD) principles of GLP14. The physiological saline (PS) extract of the test material (hydrogel coated graft material), and control (PS alone) were injected intravenously to the mice and the CSO extract of the test material and control (CSO alone) were injected intraperitoneally to the mice and the animals were observed immediately after injection and at 4, 24, 48 and 72 h for the evidence of abnormalities like any clinical signs, loss in body weight or death. The result of the systemic toxicity was evaluated on the basis of toxic signs, symptoms, body weight reduction or death of animals.

Intracutaneous irritation test: The PS and CSO extracts of the test material were aseptically injected into five sites (0.2 ml/site) on the upper left hand side and right hand side of three rabbits. The PS (control) alone and CSO (control) alone were injected into five sites on the lower left hand side and lower right hand side of the same rabbits. The grading of erythema and oedema of test and control sites of all animals at 24, 48 and 72 h were recorded as per ISO 10993-1015.

In vitro haemolysis test: The study was conducted as per ASTM F756-0016 and in accordance with OECD principles of GLP14. The test consisted of a protocol for a haemolysis test under static conditions with either an extract of the material or direct contact of the material with blood. Test and control material extracts were exposed to contact with rabbit blood under defined static conditions, and the increase in released Hb was measured. Comparisons were made with the control and test specimens tested under identical conditions.

Implantation in muscle: The study was conducted as per ISO 10993-617 and in accordance with OECD principles of GLP14. Rabbits were anaesthetized using ketamine (80 mg/kg body weight) + xylaxin (5 mg/kg body weight). The skin of the anaesthetized rabbits was lightly swabbed with 70 per cent alcohol and air dried. Five incisions were made on the skin and inserted five test implant materials intramuscularly (paravertebral muscle) along one side of the spine (right side), and about 25 mm apart from each other. Similarly, five control implant material (SCTIMST, Thiruvananthapuram) was intramuscularly implanted in the contralateral muscle (left side) of each rabbits. The incision was then closed using sterilized sutures. The study was conducted in nine rabbits (whose paravertebral muscle was sufficiently large), three animals each for one, four and 12 weeks. The body weight of the animals was not <2000 g.

In vivo implantation studies (preclinical)

The objective of the study was to evaluate safety and efficacy of the coated indigenous test graft in pig as animal model in the form of adequacy and integrity of the sealing in terms of bleeding at implantation, suturability, suture retention and handling qualities as noted by the surgeon. Patency assessment, thrombus formation if any, late leakage, seroma or aneurysm formation, dilatation, infection or any other adverse events/toxicity, in comparison to control grafts already in clinical use was performed.

Experimental design: A total of 30 disease free and healthy pigs aged 3-6 months weighing 25-35 kg procured from Ankamali, Kerala, after three weeks of quarantine were selected and divided into three groups. Three groups were assigned explantation to study healing characteristics at 2, 12 and 26 wk with six animals each as test and three each as control. Weslowski's experiments showed that healing pattern in pigs over three months was equivalent to three years in man18. In addition, large animal like pig posed significant supportive and financial impact, limiting the number. Each group underwent implantation using test and control prosthesis with hydrogel-coated fluoropassivated Chitra woven PET grafts and albumin coated commercially available polyester grafts, respectively. Pigs belonging to either sex were randomly selected and allotted to each group receiving implantations of six test and three control grafts for a test duration of 2, 12 and 26 wk each.

Surgical procedure of implantation: Under general anaesthesia and standard aseptic precautions, through midline ventral neck cut down the carotid artery was cannulated following modified Seldinger technique19 for invasive blood pressure monitoring, carotid-femoral shunt and for aortogram. Femoral artery was similarly cannulated for carotid-femoral shunt which sustained the retrografe perfusion to spinal cord and distal branches during aortic cross-clamping period.

Thoracotomy was performed through 5^th intercostal space in case of short graft and 4^th and 8^th intercostal spaces for long graft implantations. The segment of approximately 8 cm of thoracic aorta distal to the left subclavian artery was dissected by incising the mediastinal pleura. Small vascular branches were ligated either with titanium ligating clips or 3/0 silk ligatures. After heparinization at 150 IU/kg body weight, aorta was cross-clamped proximally and distally once the activating clotting time was beyond 400 sec. Either test or control graft of <10 cm was sutured as an interposing graft with end-to-end anastomosis using 4/0 monofilament polypropylene suture (Fig. 1). In four animals i.e. one in three months test group, two in six months test group and one in six months control group, long grafts of >10 cm length were implanted following end-to-end anastomosis proximally and end-to-side anastomosis distally as a bypass graft. The native aorta was ligated in continuity proximally so as to provide retrograde flow into intercostal arteries and so prevent spinal cord ischaemia. After ensuring complete haemostasis, the anastomosis was wrapped with oxidized cellulose strips, and the parietal pleura was opposed with interrupted sutures. Chest wall was closed in layers and surgical wound was managed as per standard technique. An aortogram was acquired after implantation through 7F introducer sheath in the carotid artery with tip of a 7F Judkins right coronary catheter placed at the aortic arch proximal to the proximal anastomosis using ‘Omnipaque 350’ as the contrast agent (Fig. 2). Antibiotic coverage was provided with ceftriaxone 25 mg/kg once daily and gentamicin 1 mg/kg twice daily. Analgesic, antipyretic and anti-inflammatory agents were given (5 mg meloxicam, 300 mg paracetamol and 100 mg tramadol, respectively). Anti-platelet medication with aspirin 75 mg was started on the 5^th post-operative day and continued till the end of the study.

Close

Fig. 1

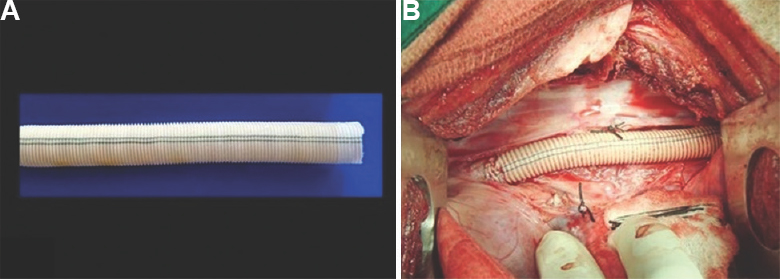

(A) Hydrogel sealed fluoropassivated woven polyester vascular prosthesis (test graft) - 10 mm internal diameter. (B) Intraoperative photograph showing interposition test graft in thoracic aortic position in pig using left posterolateral thoracotomy under general anaesthesia.

Export to PPT

Close

Fig. 2

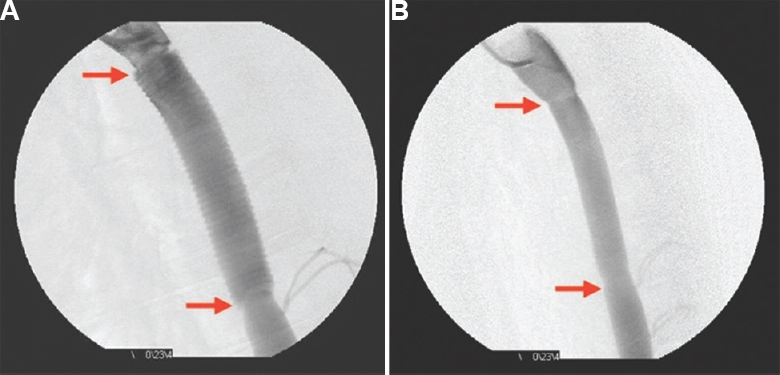

(A) Check digital subtraction angiogram showing intact proximal and distal anastomoses (red arrows), normal graft flow including the well-visualized crimping on the graft. (B) Digital subtraction angiogram at 26 wk after implantation of hydrogel sealed test graft showing excellent functional status before explantation after euthanizing the animal under general anaesthesia.

Export to PPT

Preclinical experiments were conducted in pig model with the approval of Committee for the Purpose of Control and Supervision on Experiments on Animals (CPCSEA), Ministry of Environment and Forests, Animal Welfare Division, New Delhi.

Explantation - necropsy and histopathology: At the end of the study period, animals were anaesthetized and after systemic heparinization, aortogram was acquired after a left lateral carotid cut-down as per the procedure mentioned above. The animals were sacrificed with excess dose of thiopentone sodium, pancuronium bromide and potassium chloride administered intravenously. A complete autopsy was performed by the pathologist thereafter. Grafts were cut open longitudinally and observed for thrombi, pseudoaneurysms and endothelialization. Formalin-fixed samples were dehydrated in a series of graded isopropyl alcohol solutions, xylene and embedded in paraffin as described elsewhere20. For histological evaluation, 5 μm paraffin-embedded tissue sections were stained with haematoxylin and eosin (H and E) and Masson's trichrome stain for basic light microscopic analysis and Von Kossa's stain to identify calcification. Histology was assessed qualitatively by H and E staining for cell nuclei and general matrix morphology, Masson's trichrome for collagen and smooth muscle cells.

In vitro studies

Physical characteristics: Hydrogel sealing on the abluminal side gave a gentle yellow tinge to the test graft. Test graft appeared clean, with excellent aesthetic appearance. Burst strength, suture retention, conformability were already reported for the indigenous vascular prosthesis12.

Haemocompatibility tests: The results of the haemocompatibility studies showed that due to coating leucocyte consumption and haemolysis were decreased by 23 and 13 per cent, respectively. About seven per cent increase in platelet consumption was observed for the coated graft (Table).

Table Haemocompatibility results after exposing the samples to human blood for 30 min

Small animal toxicity studies: The results of the acute systemic toxicity test indicated that PS and CSO extract of the test material and control injected animals (intravenously and intraperitoneally) did not show any abnormalities or loss of body weight during the observation period. Hence, PS and CSO extract of the test vascular graft coated with hydrogel met the requirements of the test as per ISO 10993-1113.

The results of the intracutaneous irritation test indicated that PS and CSO extract induced an average irritation score of ‘0’ in each extract following intradermal injection. None of the animals in the test and control groups (both PS and CSO) of the guinea pig maximization (sensitization) test showed any adverse skin reaction during the induction or challenge period. The extract of test material (both PS and CSO) induced a numerical grading of ‘0’ for erythema and oedema. Hence, the test material met the requirement of the test as per ISO 10993-1015.

The histopathological comprehensive result of the intramuscular implantation test indicated that the test material was non-irritant at one, four and 12 wk post-implantation. Hence, the test material met the requirements of the test as per ISO 10993-617.

In vivo experiments - implantation data: Although originally 30 experiments were planned in all, three additional implantation were conducted following the death of two animals due to bleeding into chest and another one was sacrificed when paraplegia resulted due to prolonged aortic cross-clamping (>60 min). Three animals in addition underwent implantation of uncoated Chitra graft. However, in all 33 animals, excellent handling and suturing qualities of the test graft were noted with no bleeding at all through graft interstices comparable to the control grafts. Anastomotic bleeding, if encountered, was addressed with extra pledgeted sutures. Aortograms performed showed patent graft, intact anastomosis and excellent blood flow through graft into distal aorta.

In vivo experiments - explantation data: On gross examination, lumen was patent throughout the length of the graft region in both groups. Anastomosis at both ends was intact, and there were no pseudoaneurysms. No thrombi were observed at the anastomoses or in the lumen in test and control grafts. Neointima was observed in the graft lumen as a distinct transparent layer in test and control grafts (Fig. 3). No signs of infection were observed in the graft region and at the anastomoses in both groups. Other body organs appeared normal. Even at two weeks, a thin neointima was formed at the luminal surface of the graft but could be distinguished only under microscope. Thicker neointima was observed at three and six months which were identical in appearance and was clearly distinguishable with naked eye.

On histopathological examination, proximal and distal anastomoses were intact, and healing was observed at the anastomoses in test and control grafts. In the graft region, fibrous tissue and mild infiltration of chronic inflammatory cells and foreign body giant cells were noted. No microthrombi were observed at the anastomoses and in the graft lumen of both groups. Neointima was a distinct transparent layer with regular and smooth flow surface at the anastomoses and body and was lined with endothelial-like cells. In the mid-graft region, neointima was moderately thick at focal areas, moderately thin at focal areas in a few cases and lined with endothelial-like cells. Calcification was absent in graft region in both grafts. Neointima was observed in the graft lumen as distinct transparent layer in test and control grafts. No signs of infection were observed in the graft region, and at the anastomoses in both groups. No inflammatory response was visible at 26 wk. No trace of hydrogel was observed at this time period indicating that the entire hydrogel was resorbed (Fig. 4).

Close

Fig. 3

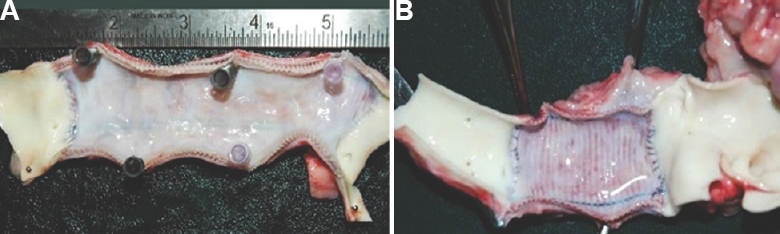

Gross photograph of the slit explanted graft at 26 wk showing thin, clean, glistening and lustrous neointima with tidy proximal and distal anastomosis and absence of thrombus in test graft (A) and control graft (B).

Export to PPT

Close

Fig. 4

Low power microphotographs (H & E, ×1.2) uniform endothelial-lined neointima (black arrow) on the inner aspect of the graft (arrowhead) six months after implantation in porcine model. The neointimal tissue thickness was 997.8 μm (standard deviation 484.6) for test graft (A) and 779.1μm (standard deviation 413.1) for control graft (B).

Export to PPT
